500-06600-395

Benchmark BNC to RCA Coaxial Cable for Digital Audio or Analog Video

Size

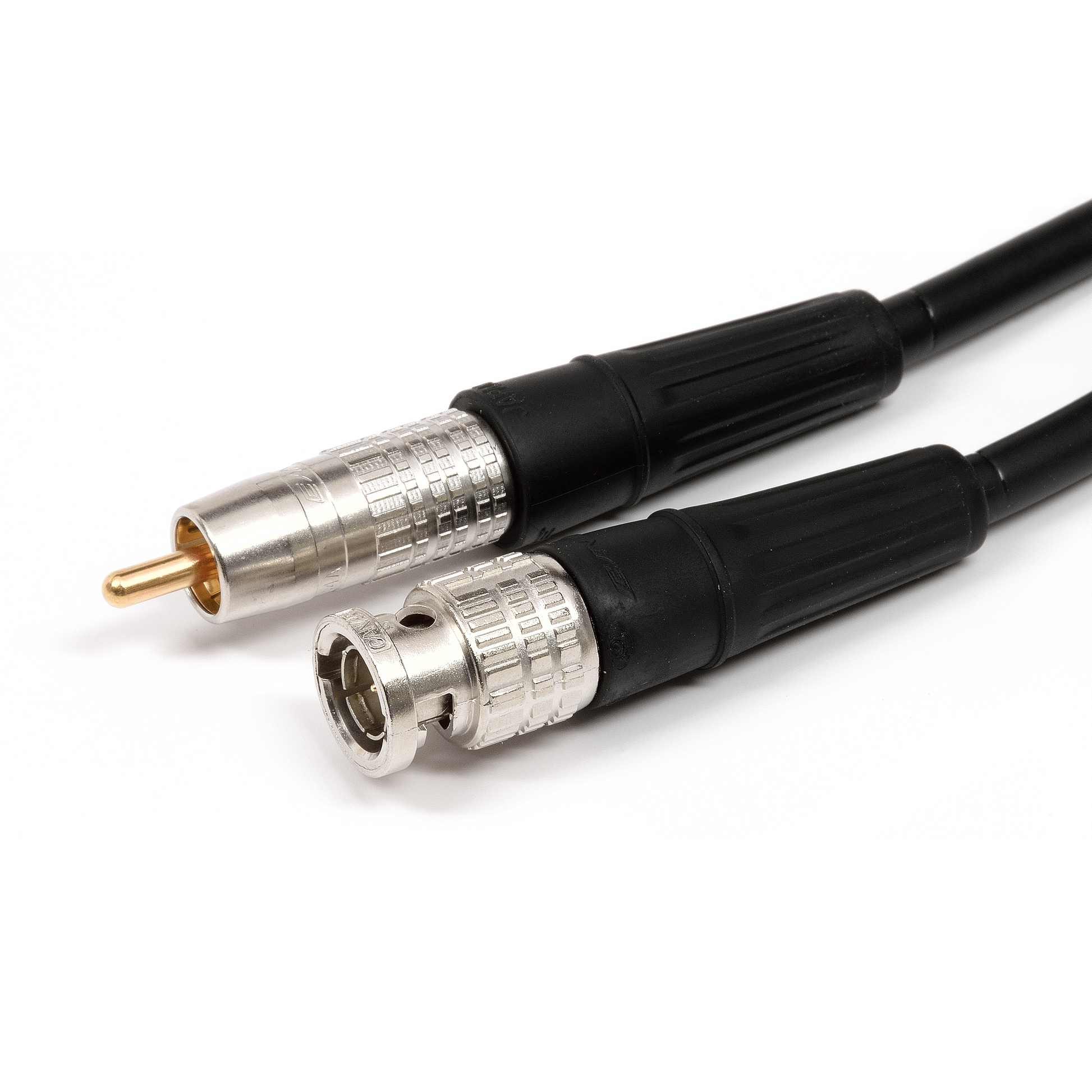

Benchmark Studio&Stage™ BNC to RCA Coaxial Cable

CABLES ARE SOLD INDIVIDUALLY

Price is for one cable.

Hand assembled in the USA with true silver solder

Constructed with 75-Ohm Canare LV61S,  low-loss, low-jitter, precision impedance coax. This cable is ideal for SPDIF, AES, and multiplexed digital audio formats. For comprehensive broadband shielding, these coaxial cables feature a dual (foil and braid) shield, to protect against high frequency RF and EMI noise and interference. All electrical and mechanical characteristics of this cable are manufactured to precision tolerances and specifications to minimize attenuation, internal reflections, and impedance mismatches. As a result, pulse rounding, bit-errors, and jitter from the cable interconnection are minimized. We use Canare RCA connectors for the best possible impedance match with 75-Ohm coax cable. These precision cables are also well-suited for unbalanced analog audio connections.

Applications

  • Digital Audio
  • Analog Audio
  • Analog Video

Specifications

  • BNC male to RCA male
  • Impedance: 75 Ohms
  • Ultra-low Attenuation & Return Loss Canare LV61S Digital Audio Cable
  • Canare BNC & RCA connectors with matching flexible boots.
  • 18 AWG Solid Copper center conductor
  • 95% TC Braid and 100% Foil Shields for great RF and EMI noise protection
  • Conductor DCR: 6.4 ohms / 1000 ft.
  • Shield DCR: 2.8 ohms / 1000 ft.
  • Hand assembled in the USA with true silver solder

CABLES ARE SOLD INDIVIDUALLY

Price is for one cable.

DESIGNED, ASSEMBLED, AND TESTED IN THE USA

This Benchmark product was designed, assembled, and tested in the USA using USA and imported components.
