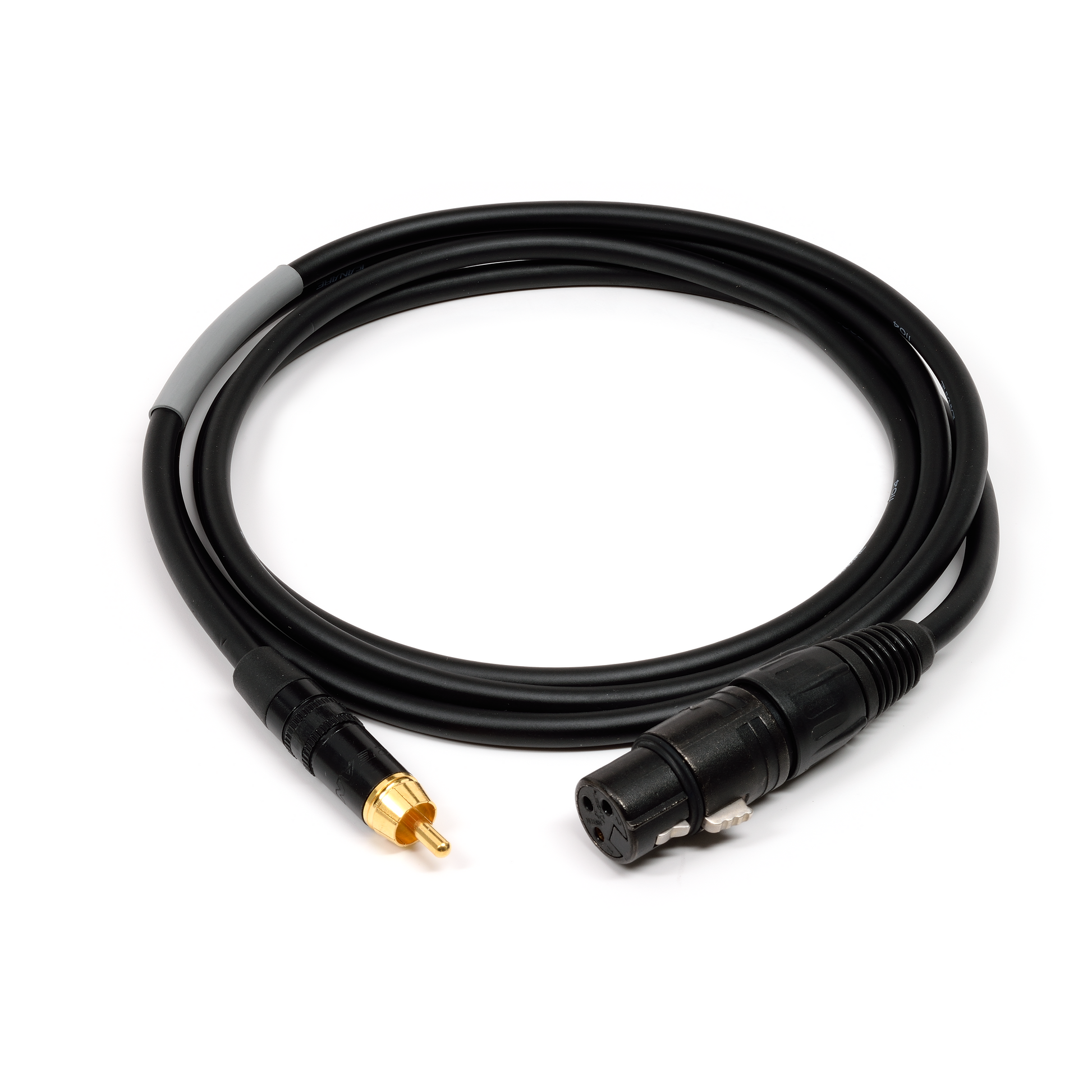

Benchmark XLR Female to RCA Male Adapter Cable - coil
Video start button with photo of John Siau and some cables on a wood box. Text reads Are Cables Snake Oil?
Benchmark XLR Female to RCA Male Adapter Cable - coil
Video start button with photo of John Siau and some cables on a wood box. Text reads Are Cables Snake Oil?
Benchmark XLR Female to RCA Male Adapter Cable - coil
Video start button with photo of John Siau and some cables on a wood box. Text reads Are Cables Snake Oil?

Benchmark XLRF to RCA Adapter Cable for Analog Audio - pin 3 floating

$38.00 USD
$38.00 USD
Shipping calculated at checkout.
Hand assembled in the USA
Top-Quality Connectors
Excellent Shielding from RF Interference
Size:
1 In Stock

SKU: 500-06906-200

Benchmark XLRF to RCA Adapter Cable for Analog Audio - pin 3 floating

CABLES ARE SOLD INDIVIDUALLY.
Price is for one cable, order 2 for a stereo pair.

Benchmark Studio&Stage™ Analog XLR Cables combine the best cable, connectors, and construction techniques in order to offer performance that meets the demands of world-class studios, while providing the strength and reliability required for stage applications. Our professional cables are also well suited for hi-fi applications because they meet or exceed the electrical performance of the best high-end hi-fi cables.

This special adapter cable connects transformerless balanced analog outputs to unbalanced analog inputs. Do not use this cable with digital signals.

Input end is XLR-Female, output end is RCA-Male

Features

Applications

This special adapter cable connects transformerless balanced analog outputs to unbalanced analog inputs.

Use this cable to connect the transformerless (electronically balanced) analog output from any Benchmark product (such as a DAC1 or DAC2) to an unbalanced analog input on a power amplifier or Hi-Fi "preamplifier".  This cable will work will all Benchmark balanced analog outputs. Please note that this cable will not work with the transformer-coupled analog outputs found on some non-Benchmark products because pin 3 of this cable is floating.  Do not use this cable with digital signals.

Benchmark Adapter Cables

Benchmark Adapter Cables combine the best cable, connectors, and construction techniques in order to offer high performance and excellent durability. This adapter cable uses Canare  L-2T2S Microphone and Audio Line Cable which is flexible, satin smooth to the touch, and extra strong. This cable is a shielded  2-conductor version of the shielded 4-conductor Carare L-4E6S cable that we use on our balanced XLR cables.

Note: This adapter cable does not use 4-conductor star-quad construction because it is intended to drive unbalanced inputs. Star-quad cables can only provide magnetic immunity when they drive a balanced input.

Like the Canare L-4E6S, the Canare  L-2T2S cable offers excellent shielding from RF interference (due to high-density braided shield), very low handling noise (due to internal construction), excellent flexibility (due to fine-strand conductors and special super-flexible insulation), and extended frequency response (due to low capacitance).

Benchmark Adapter Cables are handcrafted with true silver solder, using gold-contact Neutrik XX series connectors. The XX series are the most reliable XLR connectors available - providing excellent contact quality, strain relief, pullout resistance, and durability. Neutrik XXR color coding rings can easily be added to assembled cables if desired - order rings separately.  A Benchmark-branded sleeve is your assurance that you have purchased a genuine Benchmark Adapter Cable.

Special Wiring (pin 3 floating)

  • XLR pin 1 to RCA ring
  • XLR pin 2 to RCA center pin
  • XLR pin 3 - open

Designed, Assembled, and Tested in the USA

This Benchmark product was designed, assembled, and tested in the USA using USA and imported components.

California Proposition 65 Warning Warning: Click here for California safety warnings.

Additional Information

N/A

  • 23 AWG, 60-strand copper conductors
  • Special cross-linked PE insulation
  • Flexible in extreme cold weather
  • High-density (> 94% ) TAC braided copper shield
  • Conductor DC resistance: < 19.8 Ohms / 1000 ft.
  • Shield DC resistance: < 9.4 Ohms / 1000 ft.
  • Capacitance between conductors: 21 pF / ft.
  • Capacitance between conductors and shield: 32 pF / ft.
  • Nominal impedance: 88 Ohms
  • Hand assembled in the USA with true silver solder
  • Input end is XLR-Female, output end is RCA-Male
