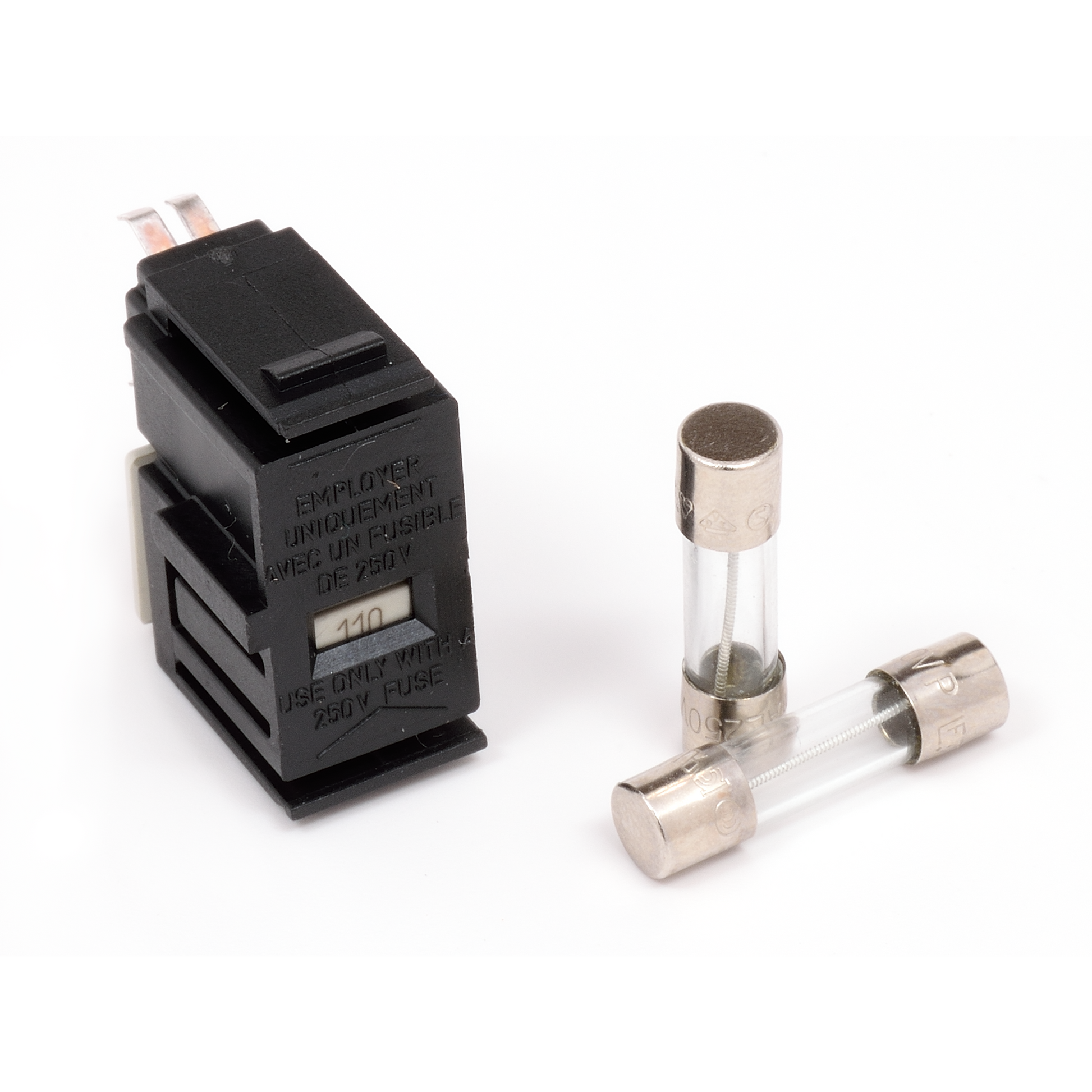

Benchmark Replacement Fuses and Fuse Drawers

Fuse Selection Guide

• Please select the product name and fuse quantity before adding to cart!
• Fuses are sold individually, order in pairs.
• Always replace fuses in pairs.
• Always replace with proper size and type.
• Order spares.

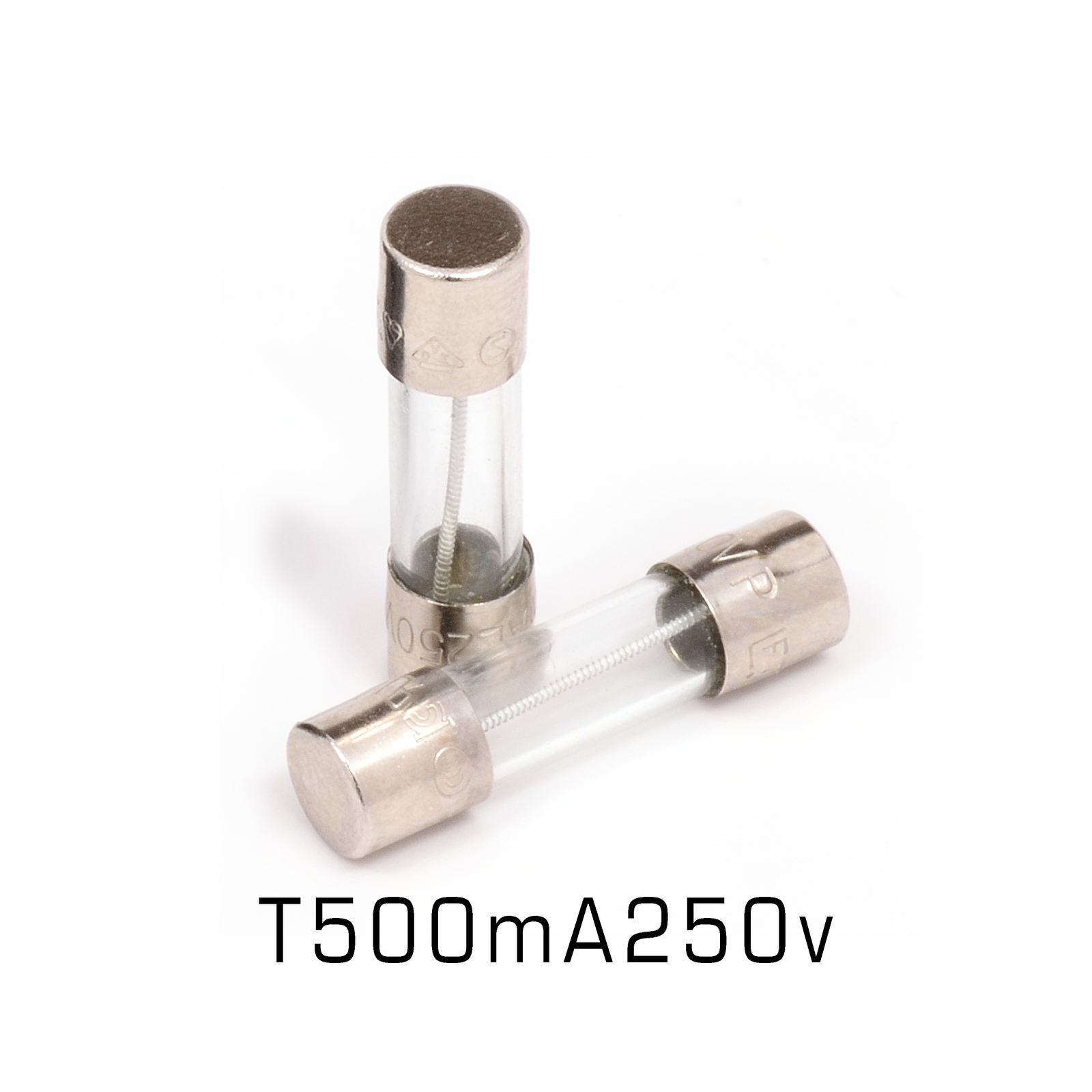

T500mA250v

This is a 500mA, glass body, time delay fuse with a 250-volt rating. Each of the following products require two of these fuses.

• ADC1
• ADC16
• DAC1
• DAC2
• DAC3
• HPA4
• LA4
• MPA1
• PRE 420

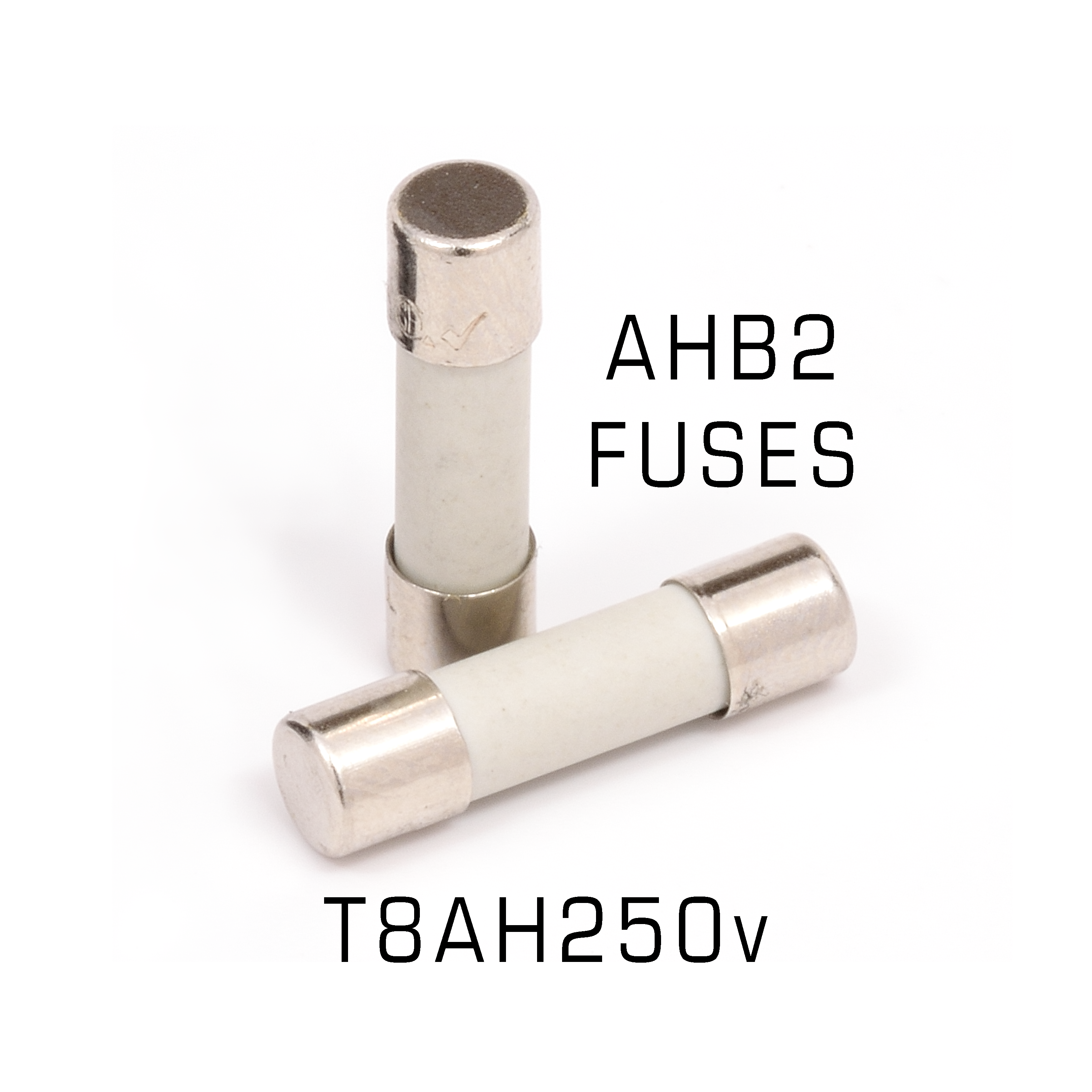

T8AH250v

This is a 8 Amp, ceramic body, time delay fuse with high breaking capacity and a 250 volt rating.  The following product requires two of these fuses:

• AHB2

Fuse Drawer Selection Guide

• Please select the product name before adding Fuse Drawer to cart!
• The two drawer types are not interchangeable.

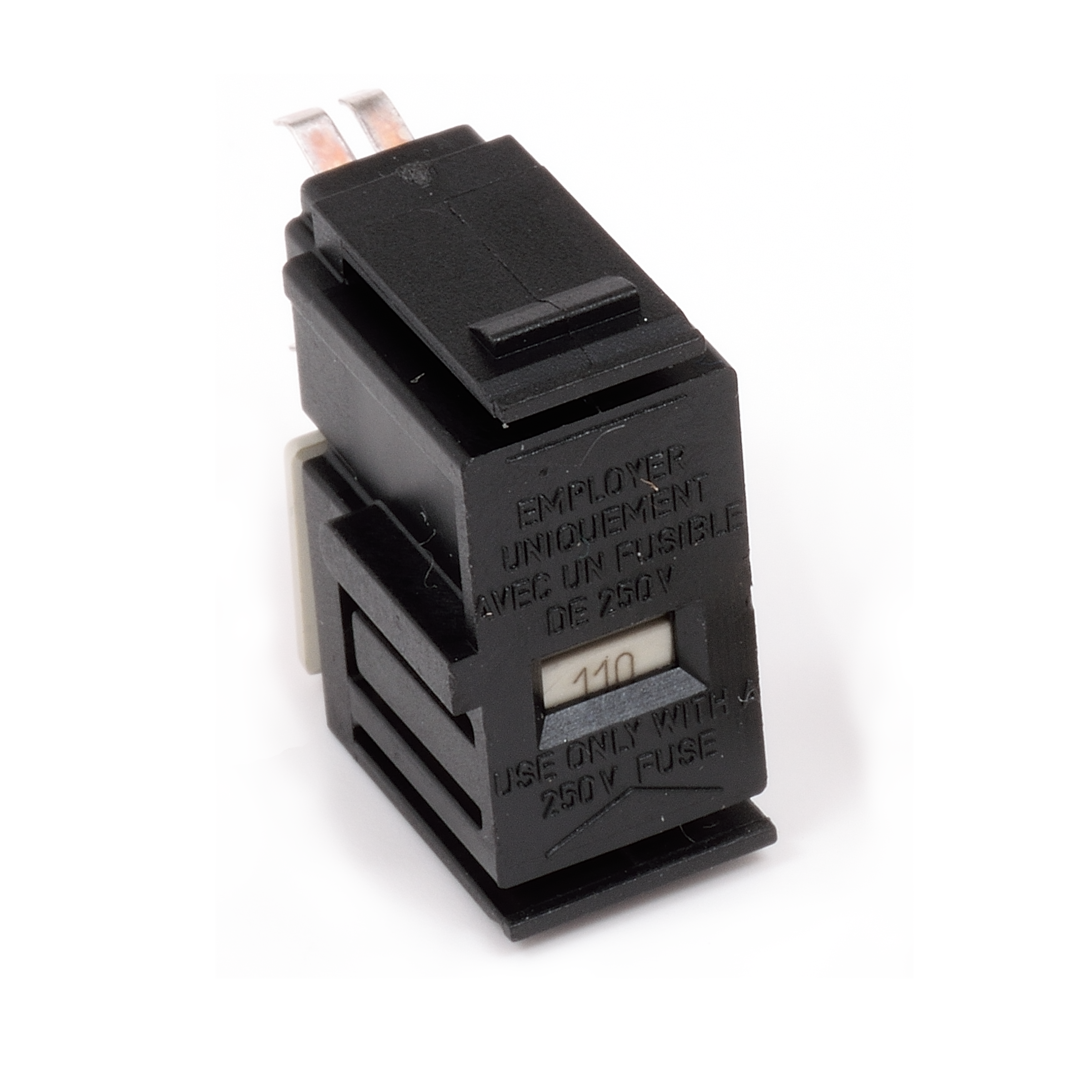

Fuse Drawer with Voltage Selector (Older Benchmark Products)

The following products use this fuse drawer which features a 110/240 volt line-voltage selection insert (included). Rotate the insert to select your line voltage before installing! For use with the following products:

• ADC1
• DAC1
• MPA1
• PRE 420

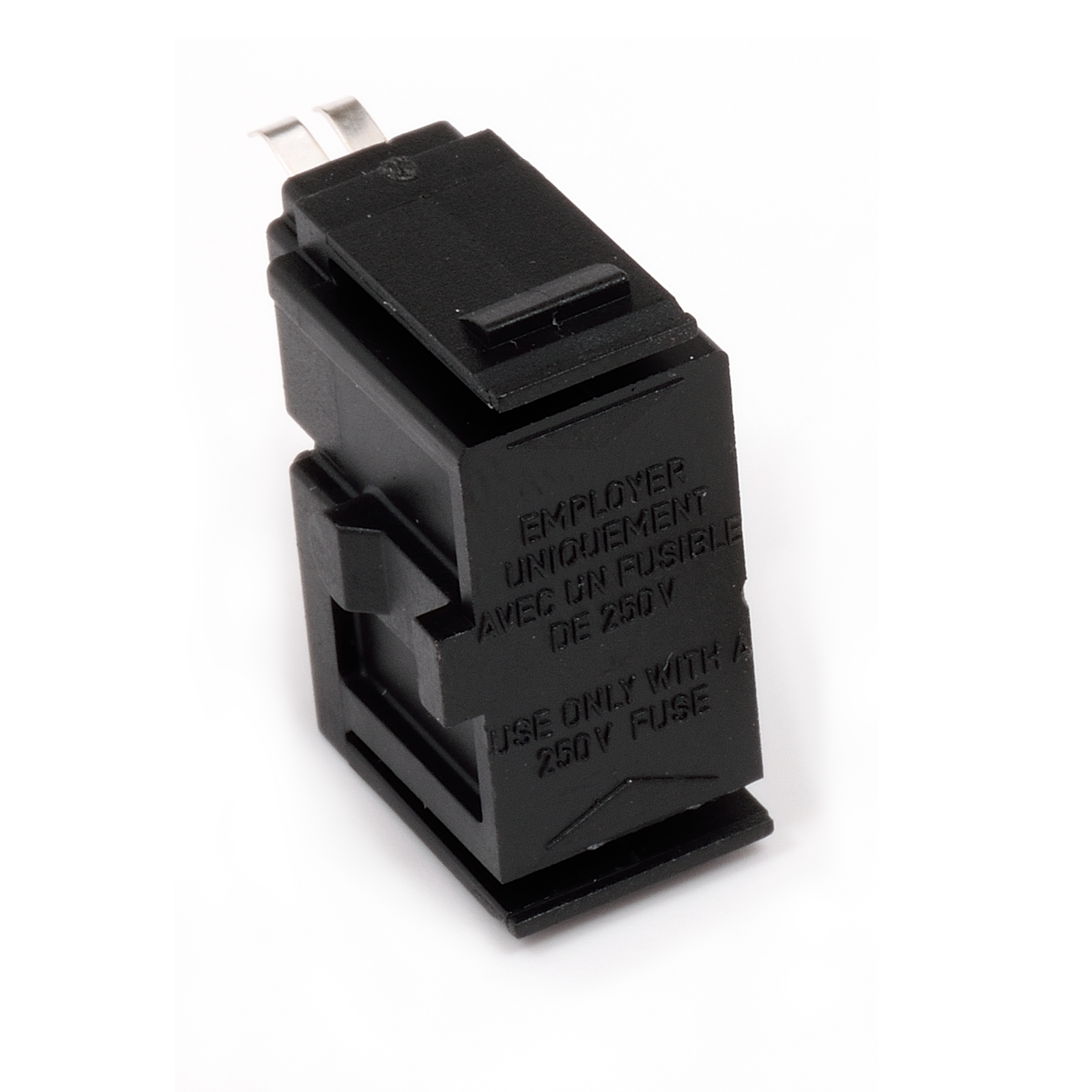

Fuse Drawer for Universal Power Supplies (Newer Benchmark Products)

The following products, with universal power supplies, use this fuse drawer which does not have a voltage selector. These products automatically adjust to the incoming line voltage. This fuse drawer is compatible with the following products:

• ADC16
• AHB2
• DAC2
• DAC3
• HPA4
• LA4
