DAC2 Lab Evaluation - AVMENTOR.net

DAC2 HGC - "Offered a very high level of performance, with very low distortion"

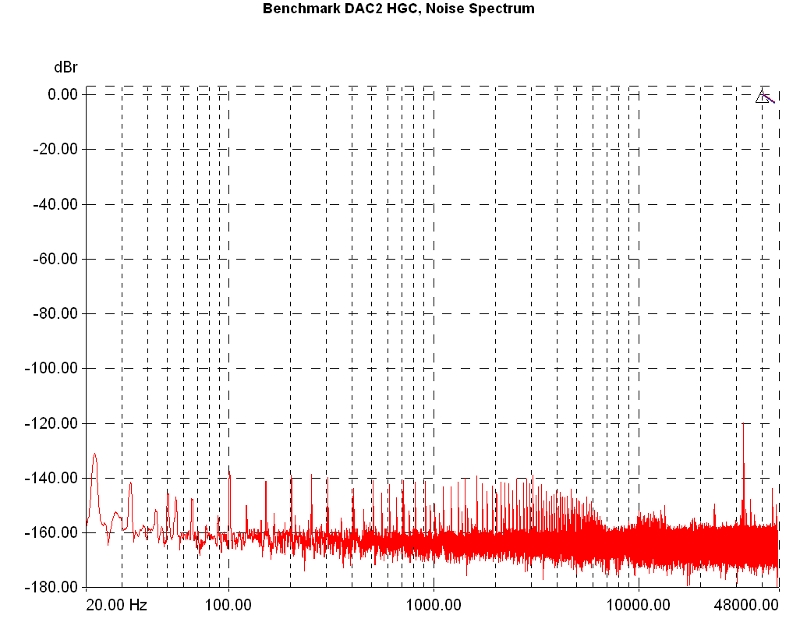

"The noise spectrum shows that the DAC2 HGC is indeed a very quiet device without problems of interference or hum."

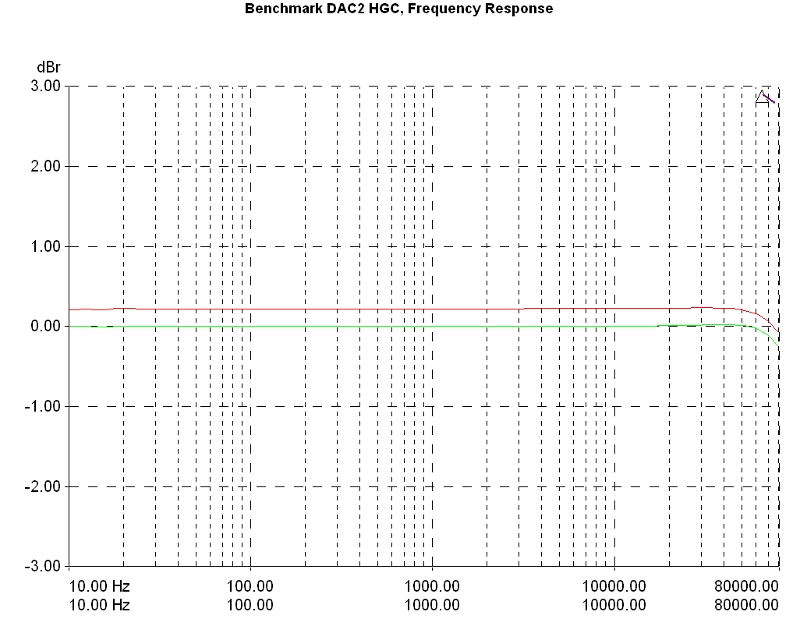

"Frequency response is flat across the entire range of measurement without a visible cut-off towards the lower frequencies, and with a rather mild roll-off at very high frequencies close to 80kHz. The differences between the two channels are small, in the range of 0.2dB."

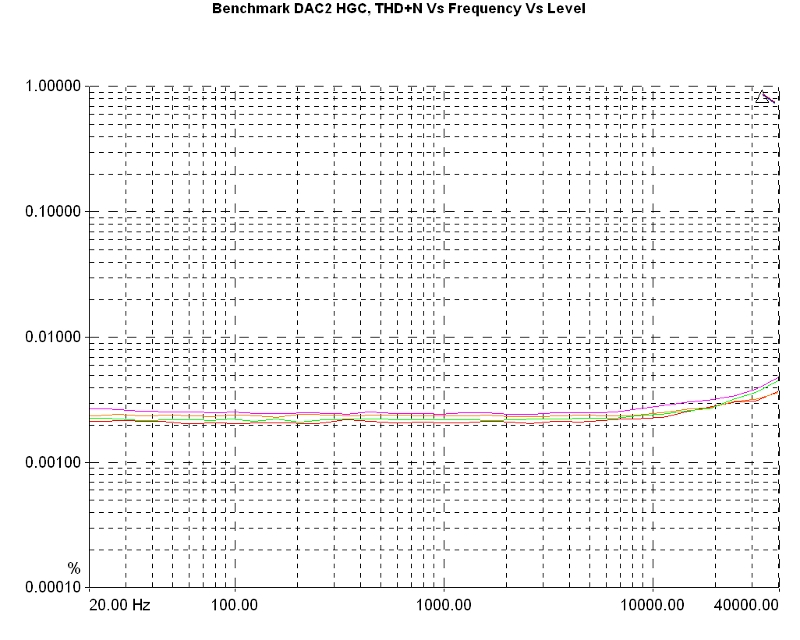

"The THD+N Vs Frequency graph does not hide any unpleasant surprises. The curves (for an output level of 1Vrms) are below 0.003% with an apparent increasing trend from the 10kHz upwards but with minimal level-depended variation, an indication for a good analog stage design."

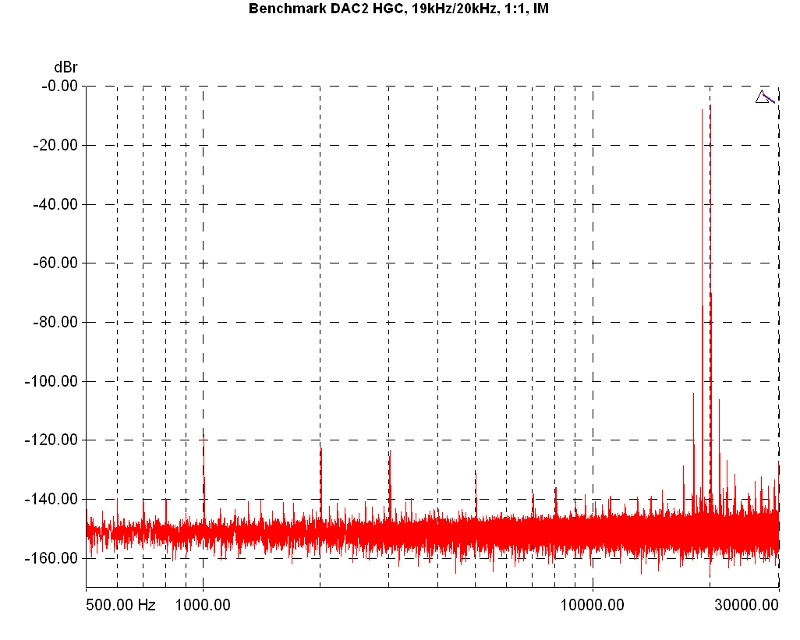

"The intermodulation distortion was also equally low, about 0.0006% (IMD/SMPTE)."

Read the full lab test report →
