Distortion measurements (THD, THD+N and IMD) are traditionally expressed in terms of percent. But what do 1%, 0.1%, 0.01% or 0.001% mean in terms of loudness or audibility?
If you are like most people you just know that 0.001% is the best of the three numbers listed above. If you are a well-trained geek you will recognize that each added leading zero represents a 20 dB improvement. 0.01% is 20 dB lower than 0.1% and this is 20 dB lower than 1%. The well-trained geek will convert % to dB in order to give meaning to these numbers.
When distortion reaches 1% it is just 40 dB lower than the music. When distortion reaches 0.1% it is 60 dB lower than the music. When distortion reaches 0.01% it is 80 dB lower than the music. Obviously the 40 dB, 60 dB and 80 dB figures are easier to understand than 1%, 0.1% and 0.01%.
Read more here:
Interpreting THD Measurements - Think dB not Percent!
Find more audio calculators here:
If an audio system is composed of multiple components, we may have detailed specifications for each component, but we will not know the performance of the combined system without doing some calculations. You may have questions such as these:
Use Benchmark's online audio calculators to find answers!
For example, if we know the output power of an amplifier, as well as the sensitivity and impedance of our loudspeakers, we can calculate the maximum sound pressure level that our system can produce.
This application note provides interactive examples that help to answer the questions listed above.
Secrets contributor Sumit Chawla recently caught up with Benchmark’s VP and Chief Designer, John Siau to get a little more in-depth on several subjects.
Q: "Benchmark is one of the few companies that publishes an extensive set of measurements, but you also balance that with subjective testing. Can you talk about the equipment, the listening room, and the process for subjective testing?"
Q: "Was there ever a time where you learned something from a subjective test that was not captured by measurements?"
Q: "You conducted some listening tests to determine whether distortion in the “First Watt” was audible. What test material did you use for this, and what did you find?"

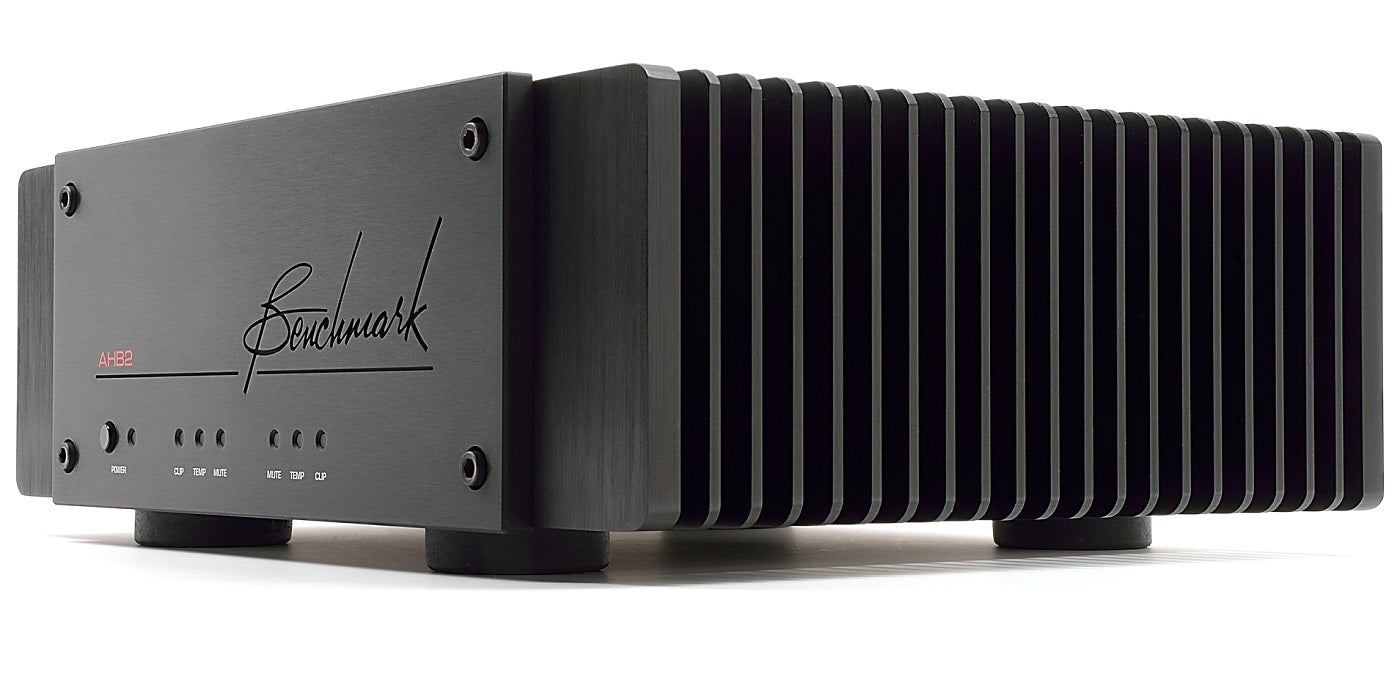

Q: "The AHB2 amplifier incorporates THX Audio Achromatic Amplifier technology. When and how did the partnership with THX come about?"
Q: "Linear power supplies have been and remain quite popular in high-end devices. You favor switch-mode power supplies. When and why did you make this switch?"
... and more!
At Benchmark, listening is the final exam that determines if a design passes from engineering to production. When all of the measurements show that a product is working flawlessly, we spend time listening for issues that may not have shown up on the test station. If we hear something, we go back and figure out how to measure what we heard. We then add this test to our arsenal of measurements.
Benchmark's listening room is equipped with a variety of signal sources, amplifiers and loudspeakers, including the selection of nearfield monitors shown in the photo. It is also equipped with ABX switch boxes that can be used to switch sources while the music is playing.
Benchmark's lab is equipped with Audio Precision test stations that include the top-of-the-line APx555 and the older AP2722 and AP2522. We don't just use these test stations for R&D - every product must pass a full set of tests on one of our Audio Precision test stations before it ships from our factory in Syracuse, NY.
