Would you put a Washing Machine in your Listening Room?

If the answer is no, you may be surprised to discover that the distortion produced by your power amplifier may be louder than the noise produced by a major appliance.

Don't believe me? Take a look at Stereophile's test reports:

We selected 7 power amplifiers from Stereophile's top list of recommended amplifiers.

We took Stereophile's "THD+N vs. Power" plots for each, and replotted the data in a format that shows the loudness of the THD+N at the listening position.

The results are shocking!

Amplifier THD+N is louder than expected!

The distortion from your amplifier may be louder than a washing machine on the spin cycle, or it may be totally silent. How does yours perform? The answer is hidden in Stereophile's THD+N plots.

This application note reveals the hidden truth:

"The Distortion from your Power Amplifier may be Louder than a Washing Machine!"

I know, it sounds crazy, but this is what the measurements show!

Most digital playback devices include digital interpolators. These interpolators increase the sample rate of the incoming audio to improve the performance of the playback system. Interpolators are essential in oversampled sigma-delta D/A converters, and in sample rate converters. In general, interpolators have vastly improved the performance of audio D/A converters by eliminating the need for analog brick wall filters. Nevertheless, digital interpolators have brick wall digital filters that can produce unique distortion signatures when they are overloaded.

10% Distortion

An interpolator that performs wonderfully when tested with standard test tones, may overload severely when playing the inter-sample musical peaks that are captured on a typical CD. In our tests, we observed THD+N levels exceeding 10% while interpolator overloads were occurring. The highest levels were produced by devices that included ASRC sample rate converters.

At Benchmark, listening is the final exam that determines if a design passes from engineering to production. When all of the measurements show that a product is working flawlessly, we spend time listening for issues that may not have shown up on the test station. If we hear something, we go back and figure out how to measure what we heard. We then add this test to our arsenal of measurements.

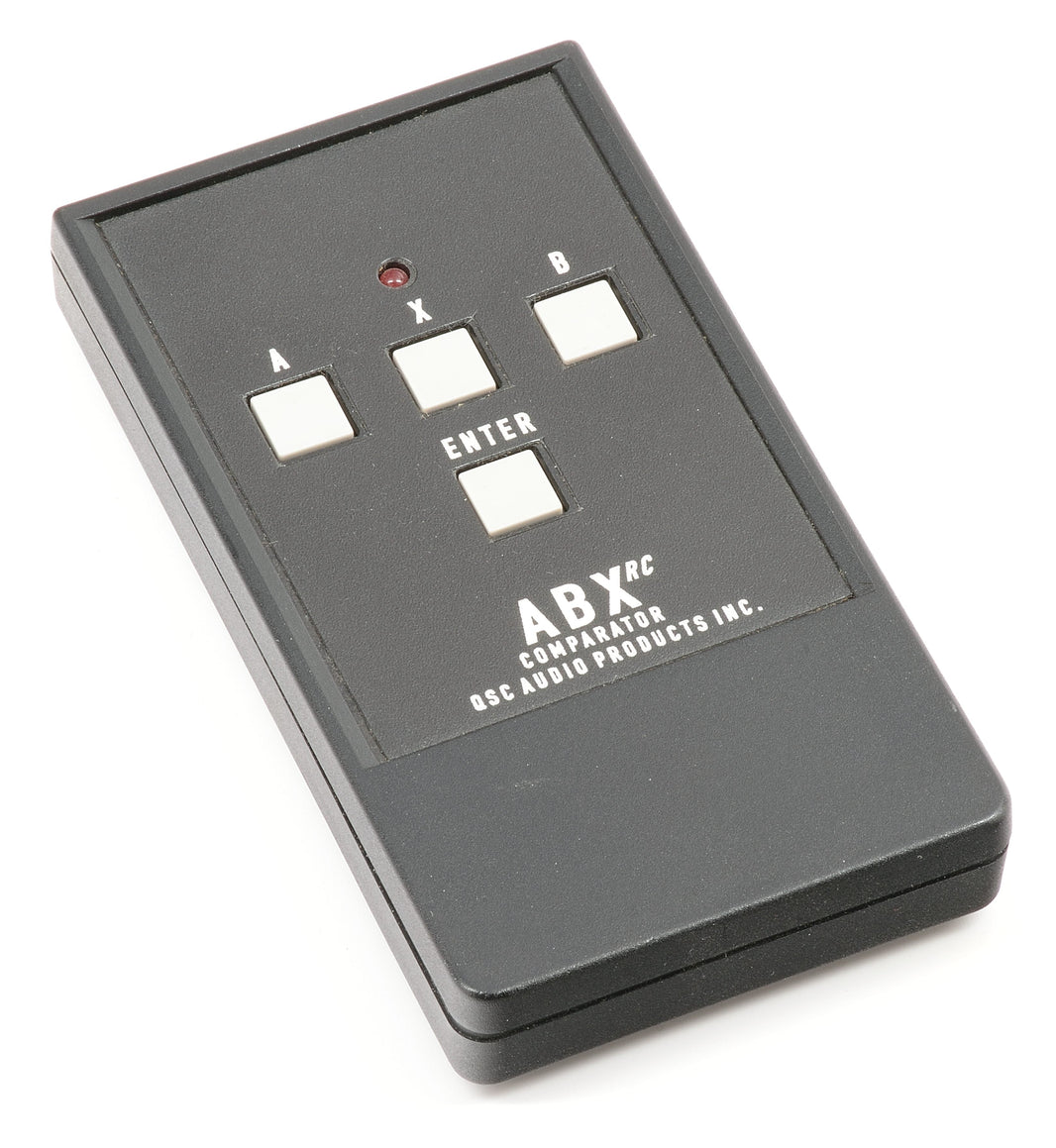

Benchmark's listening room is equipped with a variety of signal sources, amplifiers and loudspeakers, including the selection of nearfield monitors shown in the photo. It is also equipped with ABX switch boxes that can be used to switch sources while the music is playing.

Benchmark's lab is equipped with Audio Precision test stations that include the top-of-the-line APx555 and the older AP2722 and AP2522. We don't just use these test stations for R&D - every product must pass a full set of tests on one of our Audio Precision test stations before it ships from our factory in Syracuse, NY.

Paul Seydor of The Absolute Sound interviews John Siau, VP and chief designer at Benchmark Media Systems. The interview accompanies Paul's review of the LA4 in the December, 2020 issue of TAS.

"At Benchmark, listening is the final exam that determines if a design passes from engineering to production. But since listening tests are never perfect, it’s essential we develop measurements for each artifact we identify in a listening test. An APx555 test set has far more resolution than human hearing, but it has no intelligence. We have to tell it exactly what to measure and how to measure it. When we hear something we cannot measure, we are not doing the right measurements. If we just listen, redesign, then repeat, we may arrive at a solution that just masks the artifact with another less-objectionable artifact. But if we focus on eliminating every artifact that we can measure, we can quickly converge on a solution that approaches sonic transparency. If we can measure an artifact, we don't try to determine if it’s low enough to be inaudible, we simply try to eliminate it."

- John Siau

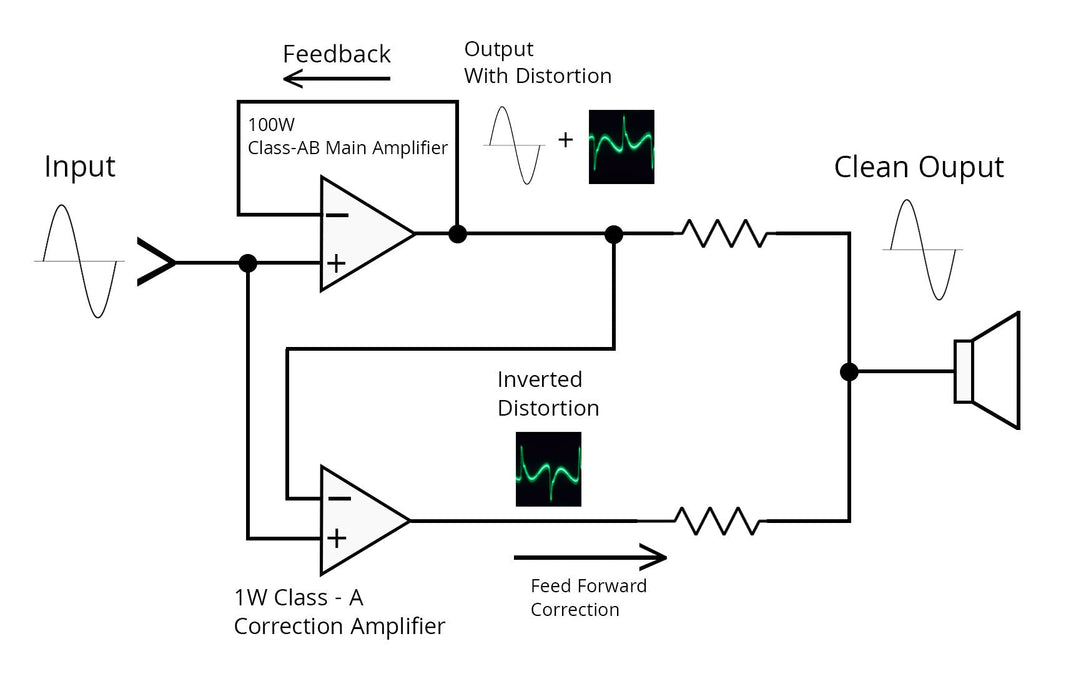

The Benchmark AHB2 power amplifier and HPA4 headphone amplifier both feature feed-forward error correction. This correction system is an important subset of the patented THX-AAA™ (Achromatic Audio Amplifier) technology. It is one of the systems that keeps these Benchmark amplifiers virtually distortion free when driving heavy loads. It is also the reason that these amplifiers can support 500 kHz bandwidths without risk of instability when driving reactive loads.

This paper explains the differences between feedback and feed-forward systems. As you read this paper, you will discover that you already understand the benefits of feed-forward correction because you use it instinctively to improve a feedback system commonly found in your automobile. If feed-forward correction can improve your driving experience, it may also improve your listening experience!

- John Siau

 In Benchmark's listening room we recently demonstrated the importance of the first watt using two 100 watt stereo power amplifiers. One amplifier was a traditional class-AB amplifier, the other was Benchmark's AHB2 power amplifier with feed-forward error correction. Using a double-blind ABX test, we verified that there was a clearly audible difference when the amplifiers drove speakers at an output level of 0.01 watt.

- John Siau

A benchmark is a standard or point of measurement to which other things can be compared.

As our name implies, we are committed to excellence. Our products often define the current state-of-the-art in terms of audio performance.

Benchmark products are designed and built by audio enthusiasts. We are musicians, audiophiles and audio professionals who are passionate about audio quality. We also are passionate about the durability and build quality of our products. Most of our products are designed, assembled, tested, and shipped worldwide from our headquarters in Syracuse, NY, USA, where we have been for over 40 years.

Our goal is to build top-quality sonically-transparent products that you will enjoy for years to come.

- John Siau, VP, Benchmark Media Systems

The AHB2 - A new and radically different audio power amplifier! Dick Olsher once said that "the first Watt is the most important Watt".

This short 8-second video clip demonstrates some of the differences.

- John Siau

Crossover Distortion - Measurements

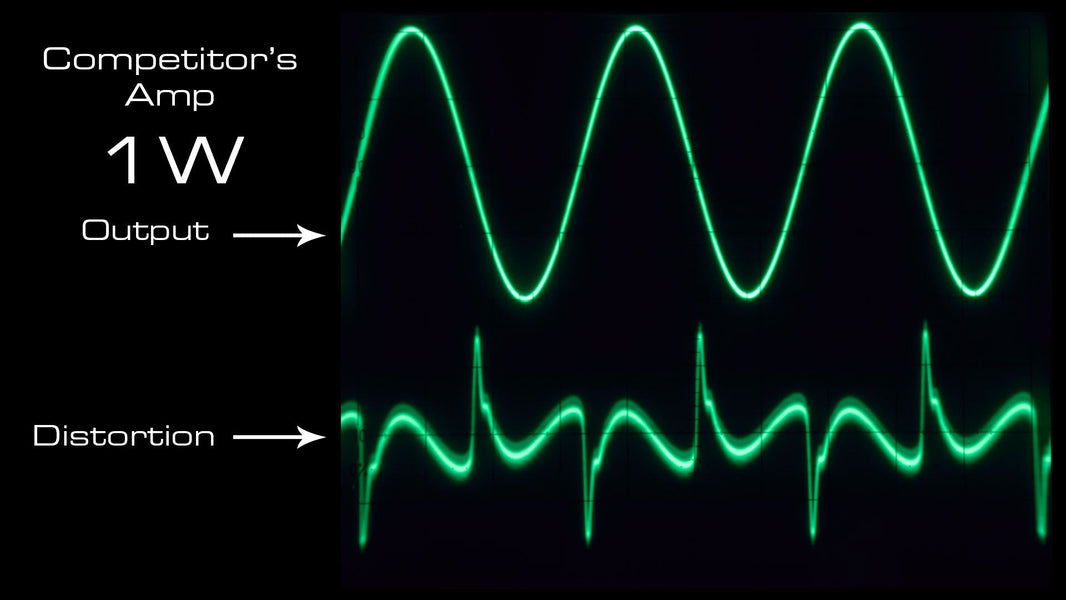

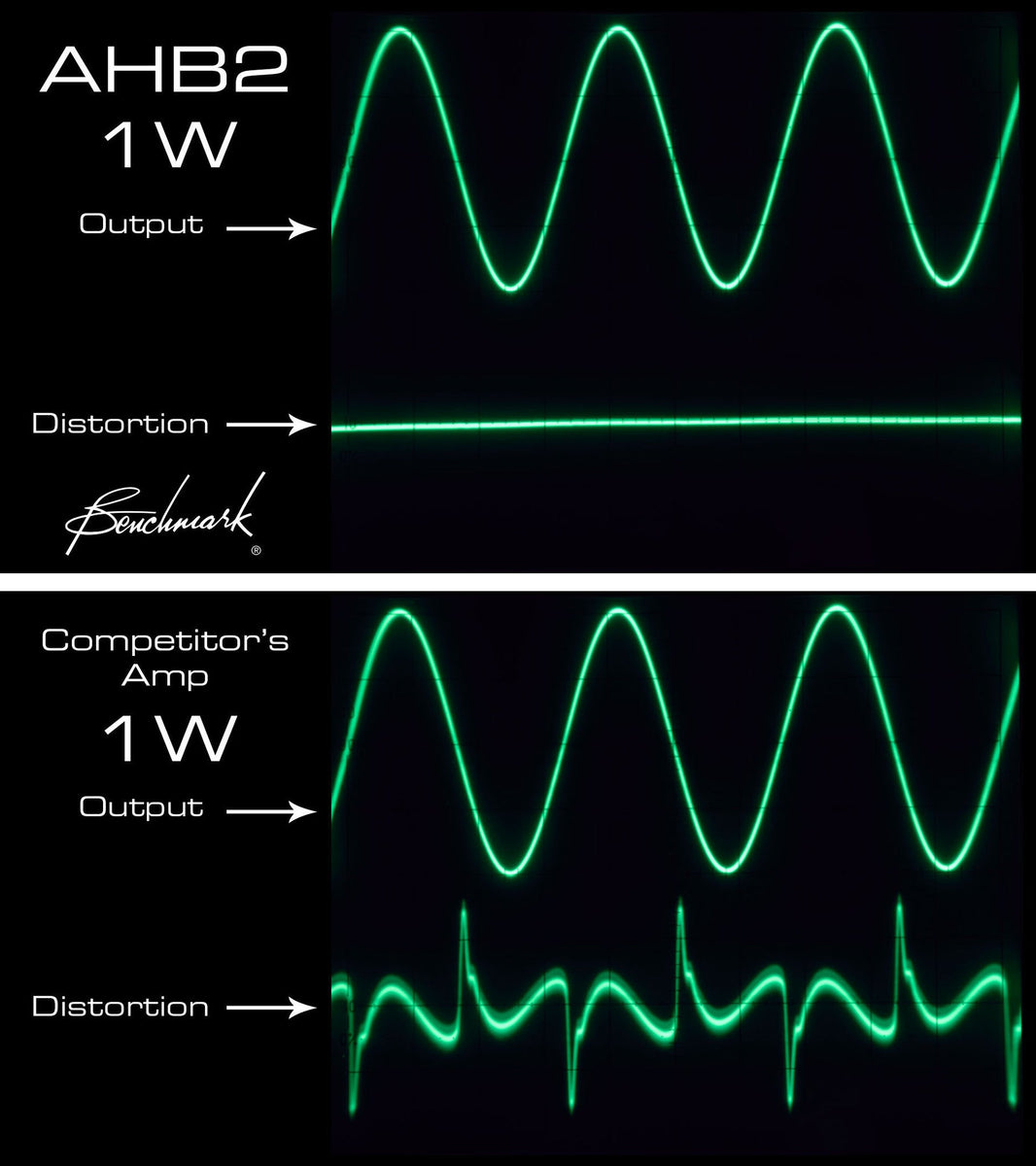

The following measurements and scope photos demonstrate the effectiveness of the feedforward system in the AHB2.

From the first Watt to the last Watt, the AHB2 shows no evidence of crossover distortion. In contrast, all conventional class-AB amplifiers have crossover-distortion artifacts.

Dick Olsher once said that "the first Watt is the most important Watt". I agree!

 - John Siau

Crossover Distortion - Introduction

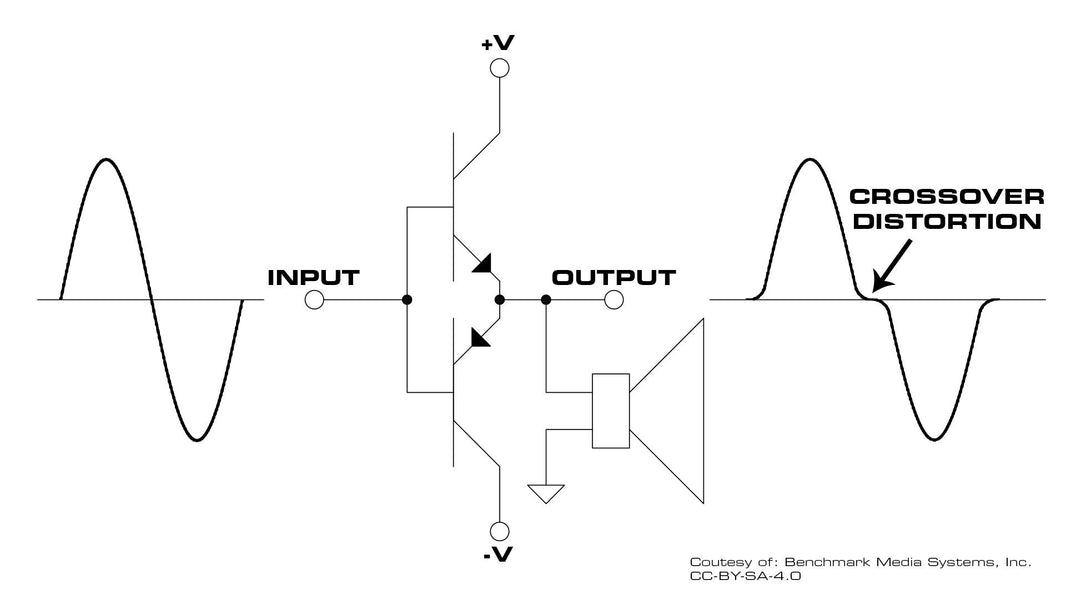

Most audio power amplifiers suffer from a defect known as "crossover distortion". This distortion is particularly troublesome at low output levels. At low power levels, the crossover distortion can rise to a high percentage of the output level and become the dominant source of distortion.

- John Siau

Two Distinct Types of Audio Products - Understand the Difference Before You Buy!

Make your own choice!

"Buying an audio product is much like buying a car"

There are two distinct types of audio products. Some audio products are designed to be transparent while others are designed to provide a euphonic experience. These types are as different as a Porsche and a Cadillac.

There is not a right and wrong type of car. Likewise there is not a right and wrong type of audio product. The choice belongs to the user, but the user must be fully aware of the differences before they buy.

- John Siau

Benchmark introduced the DAC1 in 2002 and it quickly became the best-selling 2-channel professional D/A converter. To this day, the DAC1 is a standard fixture in many recording studios, and it is also a central component in many high-end hi-fi systems. In August of 2015, Enjoy the Music.com selected the DAC1 as one of the 20 most significant digital audio products from the past 20 years.

It is easy to show that the DAC2 measures better than the DAC1 in almost every way. From a marketing perspective it would be tempting to claim that all of these measured differences make audible improvements, but this just isn't the case.

One reviewer, Gary Galo, recently had the opportunity to hear a DAC1 and DAC2 side-by-side. He noted some audible differences and we agree with his conclusions. We have had a great deal of experience listening to these converters side-by-side in our own listening room and we are familiar with some subtle differences.

This paper examines the subtle audible differences between the DAC1 and the DAC2. It also includes measurements that may help to explain these differences.

- John Siau

Radical!

The performance of the AHB2 would not have been achievable without taking a radical approach to power amplification. In many ways, the AHB2 is a complete 180 degree departure from traditional high-end amplifier designs. There is nothing ordinary about the Benchmark AHB2! It is also not a class-D amplifier!

Take a look inside this unique linear audio power amplifier!
